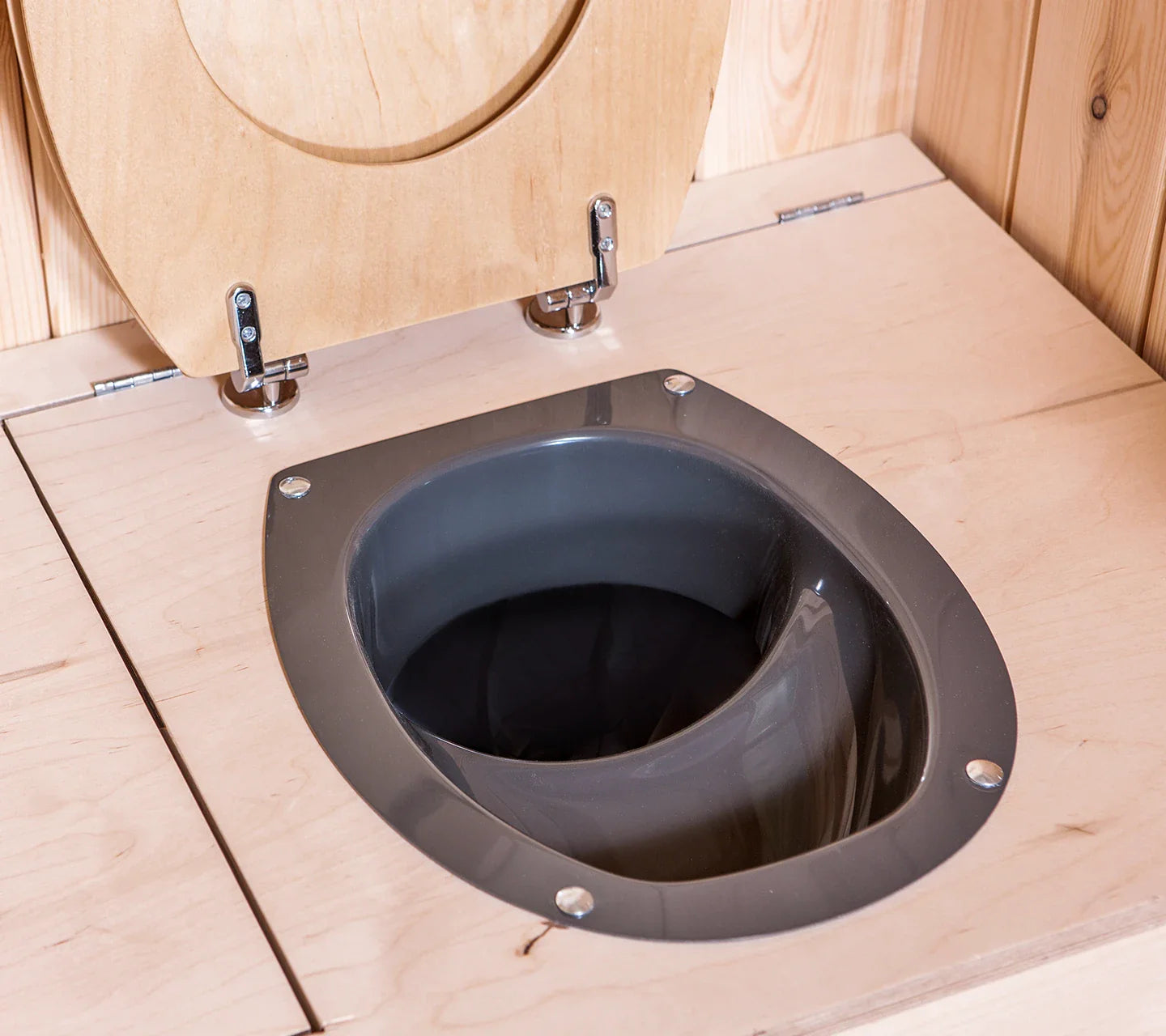

  • TROBOLO composting toilet insert grey assambled
1 9

Urine diverter

Urine diverter

Item number: U6GXX1358

  4.86  Excellent

The new, innovative TROBOLO urine diverter for composting toilets is the ideal solution for all those who want to build their own composting toilet. Thanks to years of experience and further development, the TROBOLO urine diverter has the best characteristics to meet the different anatomical requirements of all toilet users. It ensures a consistent separation of waste products and is therefore a basic requirement for an odourless composting toilet.

Colour: Grey
£69.90
£69.90
incl. VAT / Shipping calculated at checkout
⬤  Ready to ship
3 - 7 days
i
The delivery time refers to our business days from Monday to Friday.
Description
  • Unique adapter system with filter screen
  • High-gloss, smooth surfaces, therefore easy and hygienic cleaning
  • Extra long service life due to particularly solid design and exchangeable individual parts thanks to the adapter system
  • Enables easy disposal of toilet waste
  • Compatible with any standard toilet seat
  • Material: Polypropylene, 100% recyclable
  • Also suitable as spare part for all TROBOLO composting toilets
  • Dimensions in mm: height 170 | depth 375 | width 322
  • Inner diameter in mm: Longitudinal 310 | Transverse 240
Scope of delivery

1xUrine diverter

1xcutting template

1xAdaptor system hose connector incl. filter sieve for DN 32

1xAdaptor system filter sieve

1xassembly instructions

1xinstructions for care & maintenance

View full details
Video TROBOLO and purpose of the separation system

The TROBOLO urine diverter: The heart of your composting toilet

A urine diverter is the heart of every composting toilet, because it ensures separation of solid and liquid waste. Years of experience and testing have enabled us to develop a urine diverter that is designed not only to achieve complete separation of urine and faeces (excrement), but also to offer the highest level of comfort, flexibility and hygiene beyond its separation mechanism.

Using a composting toilet with the TROBOLO urine diverter works just like a conventional toilet. Inside the toilet, however, urine and faeces are separated. The urine is collected in the front area and is discharged into a separate liquids container, an external container outside the toilet or separately into the sewerage system via a pipe. Faeces, on the other hand, go into a solids container in the rear part of the diverter. The urine diverter is designed to meet the different anatomical requirements of all toilet users, while always ensuring clean and reliable separation of faeces.

  • The TROBOLO urine diverter for composting toilets is particularly suitable for building your own composting toilet and allows you to implement your individual wishes and needs. Especially practical is the fact that the urine diverter can be used with any standard toilet seat, which greatly simplifies the planning of your self-built separating toilet and the associated procurement of materials.

    In addition, the innovative TROBOLO adapter system offers you the possibility of attaching a hose which can drain urine externally and can be connected to the grey water tank of your motorhome, for example. The hose can easily be attached to the new adapter system with integrated filter screen, which makes installation particularly easy and also allows you to remove the hose if necessary to clean or replace the filter screen.

  • All TROBOLO composting toilets, which you can purchase as a complete solution in our online shop, also use this urine diverter. This means that it can also be purchased as a spare part if you already own a TROBOLO composting toilet.

    Faeces pass completely contact-free through the rear part of the TROBOLO urine diverter into the solids container equipped with inlays, making subsequent emptying very easy. The inlays can be removed and disposed of or composted in no time at all. The deep-drawn collar of the rear opening of the urine diverter also reliably protects the interior of the toilet from contamination. In addition to the smooth and closed surfaces, a high-quality surface seal guarantees a long service life as well as practical and hygienic cleaning. Ideally, we recommend an environmentally friendly cleaner for this purpose.

Your advantages of using a composting toilet urine diverter

Conventional water closets, but also chemical toilets or classic composting toilets all do without the separation of urine and faeces. However, this proves to be problematic when it comes to disposal of waste. Emptying containers that mix solids and liquids is a considerable challenge for you as a user and by no means as uncomplicated and clean as emptying separate solids and liquid containers.

The separation of urine and faeces also consistently avoids unpleasant odours and water can be dispensed with completely when using the toilet. Due to the simple and uncomplicated disposal via household waste or through composting of the faeces, the use of a dry toilet is completely self-sufficient. You can read here how our TROBOLO composting toilets work in detail and what the individual advantages are: Function of the TROBOLO Separating Toilet System

woman looking throw a separating insert

Do it yourself – with the new TROBOLO urine diverter

Our newly developed urine diverter is ideal for building your own composting toilet solution. This part allows for perfect separation of solid and liquid materials and is made of responsibly selected, recyclable polypropylene. The selection of this material enables the urine diverter to have a very long service life, which was an important consideration for us in the development of the urine diverter from the point of view of sustainability. Only the filter screen can wear significantly over time due to deposits.Compared to products from other manufacturers, individual parts can be replaced in seconds thanks to the TROBOLO adapter system, while the rest of the diverter remains unaffected by wear and can continue to be used.

The adapter system also allows flexible connection options, so that in addition to collecting the urine in a liquid container, it can also be discharged via a DN 32 hose. Regardless of which connection option you choose, the integrated seal always ensures an absolutely secure connection to the urine diverter.

TROBOLO Composting toilet insert

Toilet solutions with the TROBOLO urine diverter

In all our TROBOLO composting toilets, a urine diverter is already installed and the individual components are perfectly matched to each other. You receive our TROBOLO toilets either fully assembled or as prefabricated kits including all accessories and easy-to-follow assembly instructions delivered directly to your home.

Of course, you can also build a composting toilet yourself. If you want to build your own composting toilet, the TROBOLO urine diverter is an important accessory that serves as the centrepiece of your DIY composting toilet.
